The Diary in Graphs

Some first graphs to analyze the tracking data in some other ways. It is now almost one month (I have not yet the data from all the participants for this time period) of tracking and I think this is gona be the first milestone in the project. At the moment I think that one month could make a pretty good unit as a base to start analyzing the data. A cycle of a four week patterns could provide enough data to paint a rough picture of the activities and range. As it is the first month I m only guessing here and will have to check this assumption as more data will be coming in over the next couple of weeks.

The graph visualization focus on the quantitative aspect of the data together with the time information over the location information. The idea is to look at the schedule information contained in the record. This is of interest as the project is interested to enhance knowledge on personal, spatial routines. The graphs are visualizing the amount of activity over a specific time period. The periods are one day – 24-hours, one week and one month. Using these units of general time frames helps to establish an appropriate framework for the data. Participants are all understood to use these time frames. More specific units could relate to religion, culture or specific responsibility or job. These will be respected on a more individual level of analysis. In the graphs the x-axis represents time were as the y-axis refers to amount of activity. This is measured by the number of log points the GPS device has stored for the time period in question. The graphs do not give information about time spent in one location they solely focus on travel time between destinations.

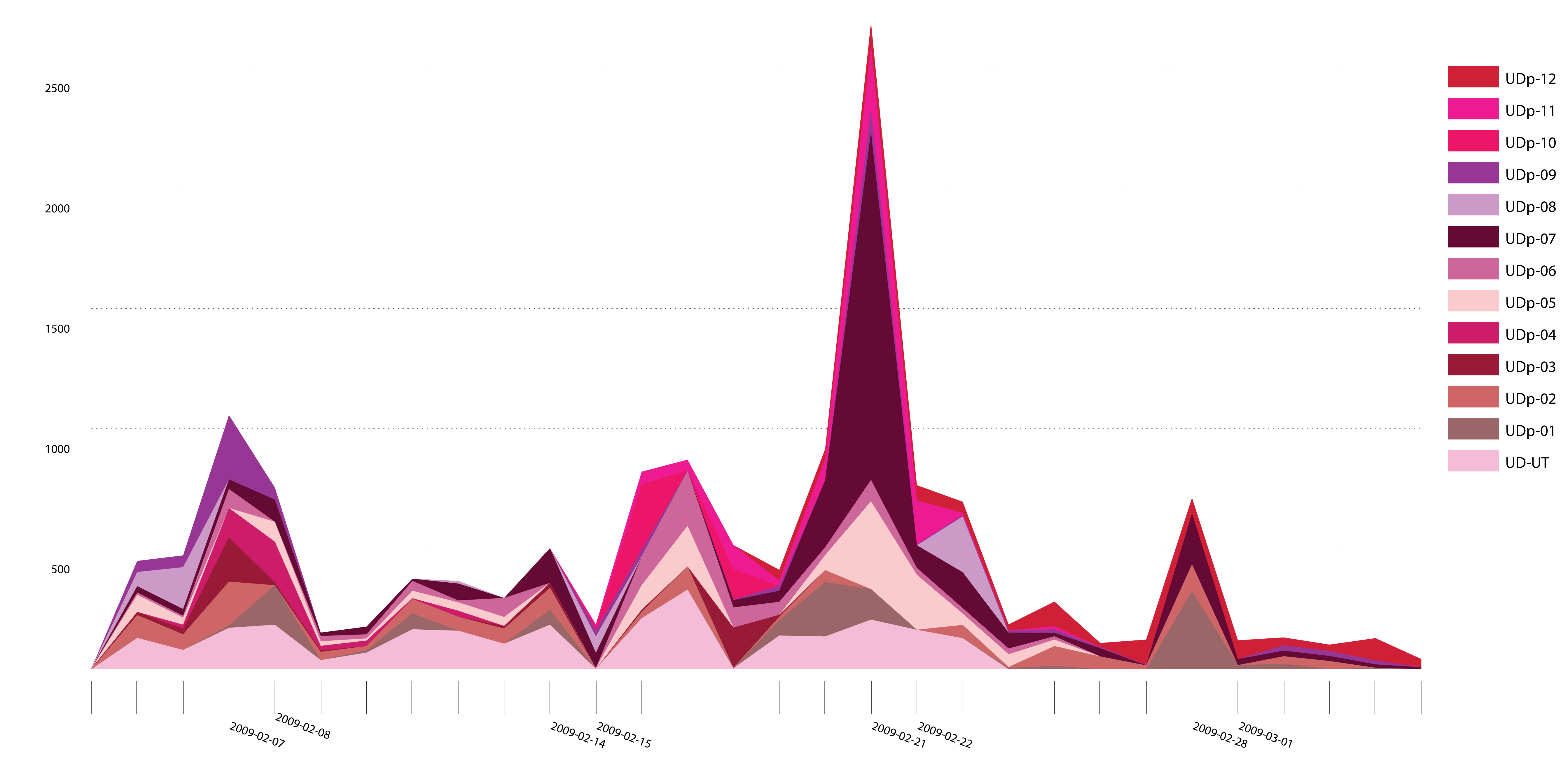

One month analyzed by day and participant. In total there is four peeks over four weekends. They generally do match, although one peak has slightly moved into week three. This was the UK midterm week, a holiday brake. Participants who have children or work in a school have spent more time traveling during the normal weekdays. Surprisingly the Sunday at the start of this mid term week is very low. All of the participants have recorded little activity. It must have been really bad weather and people stayed indoors. On the contrary, one Saturday pops out extensively. It turns out that one of the participants had an intensive outdoor sports day, during that he generated a large number of points.
Image by UrbanTick for UrbanDiary – Graph UD first month

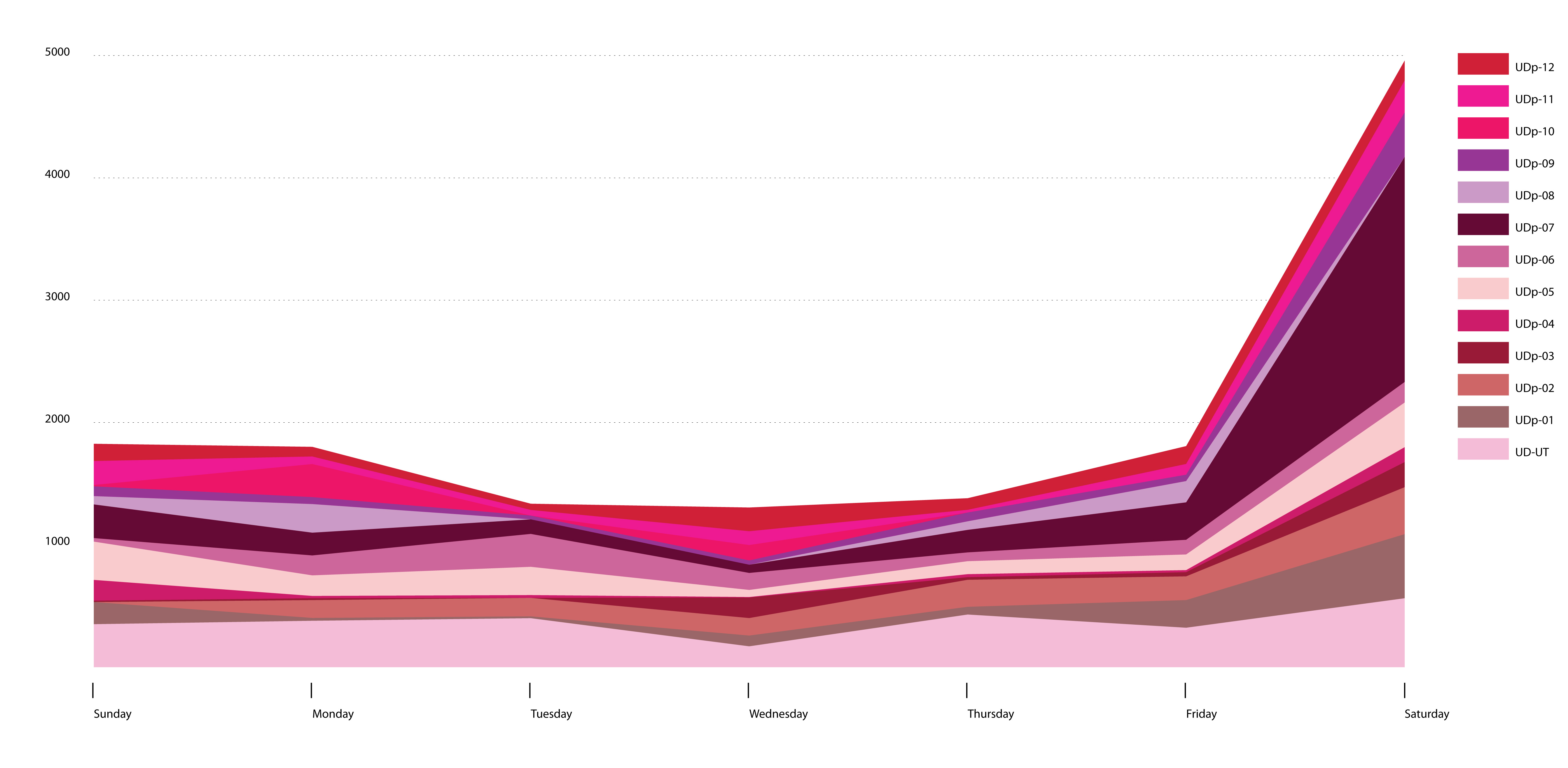

There is an activity accumulation on Saturdays. This shows up in particular in the week’s graph. Saturday has more than double the amount of points over other days of the week. Not only this one participant who is doing intense sports activity on Saturday, but all of the participants tend to have significantly more activity on Saturdays. Other than that the weekdays are fairly equal in terms of activity with tendency to a low point midweek.

Image by UrbanTick for UrbanDiary – Graph UD week

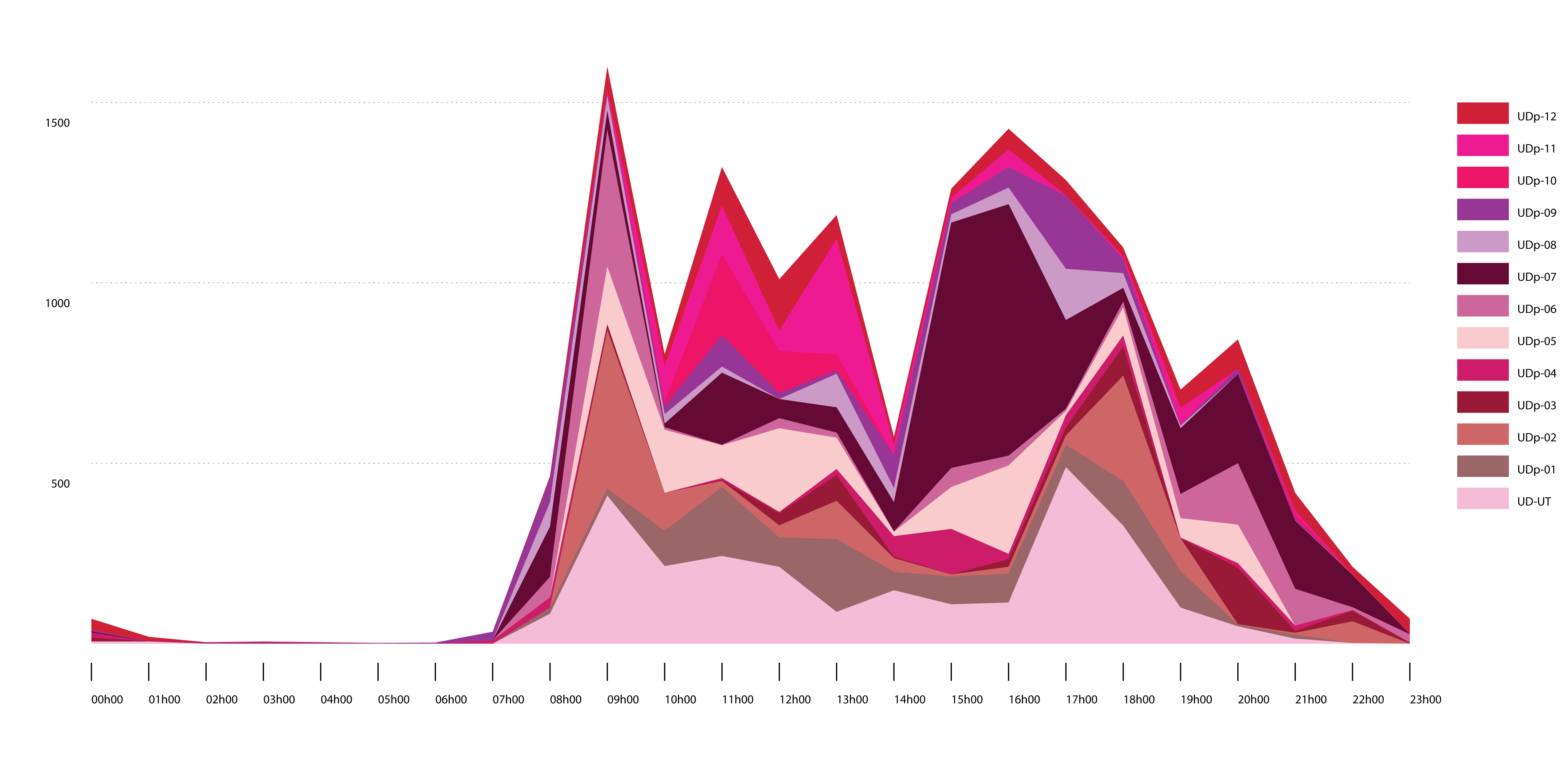

Compared to the regularity of the week, the 24 hours graph shows a number of peaks. The graph starts at midnight with an expected flat bit representing few activities. In the first hours of the day there is some activity but it reduces to virtually zero in the early hours of the morning. The day then starts with a first peak of the morning rush hour. Around seven participants start leaving the house, but it then really takes off from eight, peaking around nine and coming to a first low point around ten. From this low the second peak starts rising immediately. By looking closely at the participant involved in these first two peaks one can see that actually there is two groups, one generating the first “rush hour peak” and the second group mainly contribute to the second similar peak about one hour later.
The second peak has a twin peak with a first high point around 10h00 and a second one just before lunch around 13h00. After lunch around two o’clock there is the low point of the day with the least activity during this 24-hour day apart from the early morning hours.
After the lunch brake, there is a fat afternoon / evening peak. This is representing a number of weekend afternoon activities like the out door sport that was mentioned above. Included into this fat peak are a first evening rush hour high point between five and six and a smaller second peak around eight, probably pointing to the visit of the pub after work.

Image by UrbanTick for UrbanDiary – Graph UD day

Colour correspond with the key on the map here
Generally this reassembles the expected daily routine pattern of a western city. Surprising is more the accuracy the pattern shows up, rather than any unexpected results. Although the sample is not representative this was not expected to find this regularity.
